HAMRAN SAN’AT KSM, has been established mainly for production of different types of trucks applications, as well as assembling heavy trucks and tractor heads in 2nd phase.
“Hamraan KSM” currently produces variable range of trailer applications:
- Container Trailers
- 2 Axles & 3 Axles Flatbed Trailers
- Tent Trailers

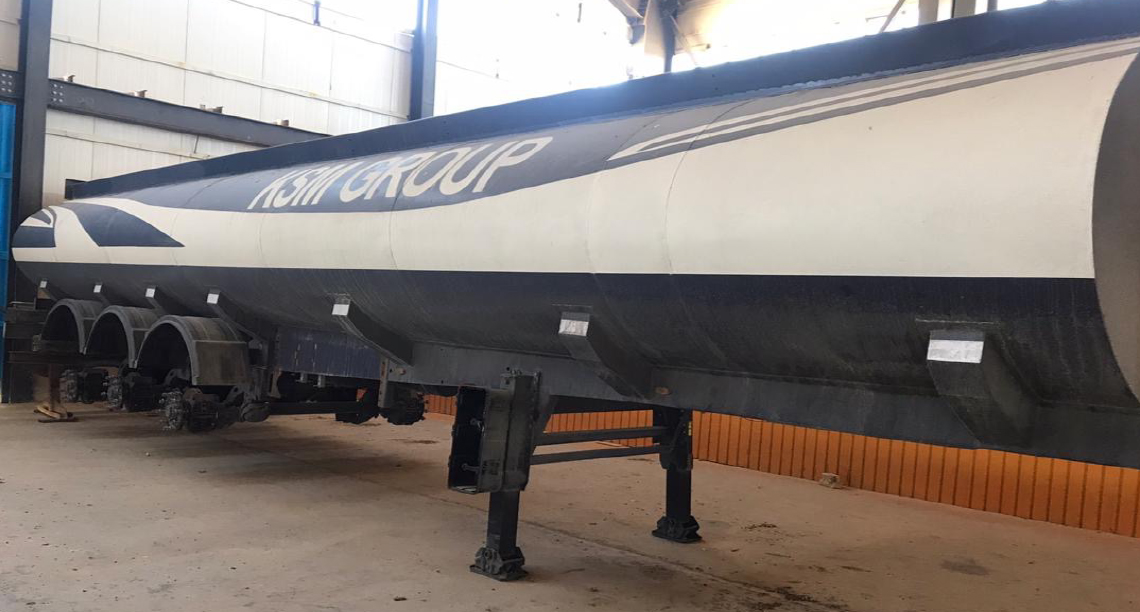

- Tanker Trailers
All main parts and components like axles, brake system and control units are German brands.

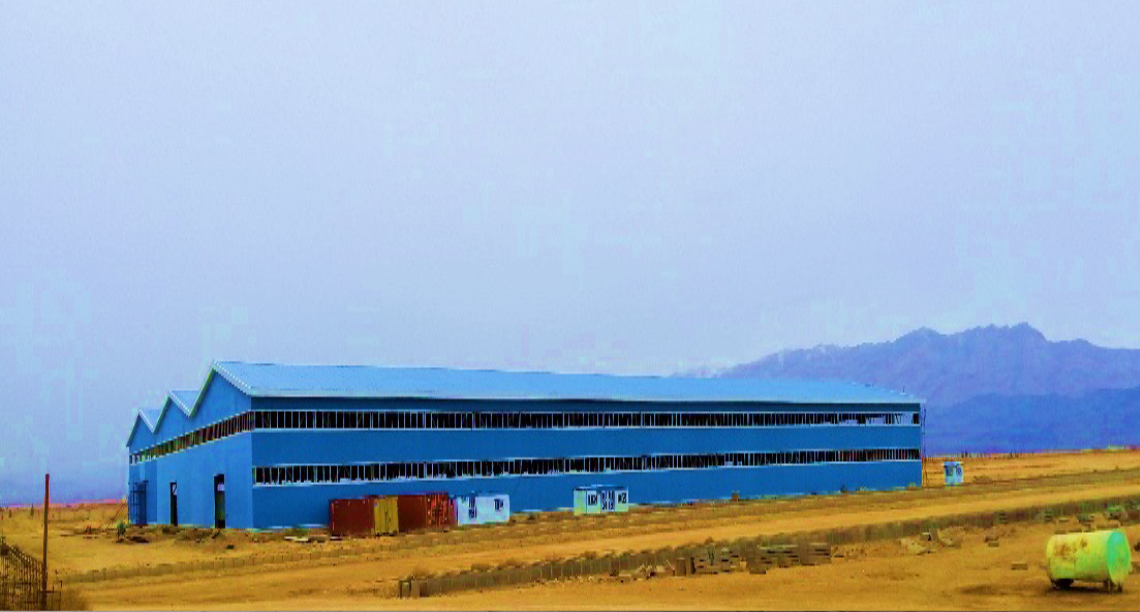

Our trailers & Trucks factory is located in Semnan province.

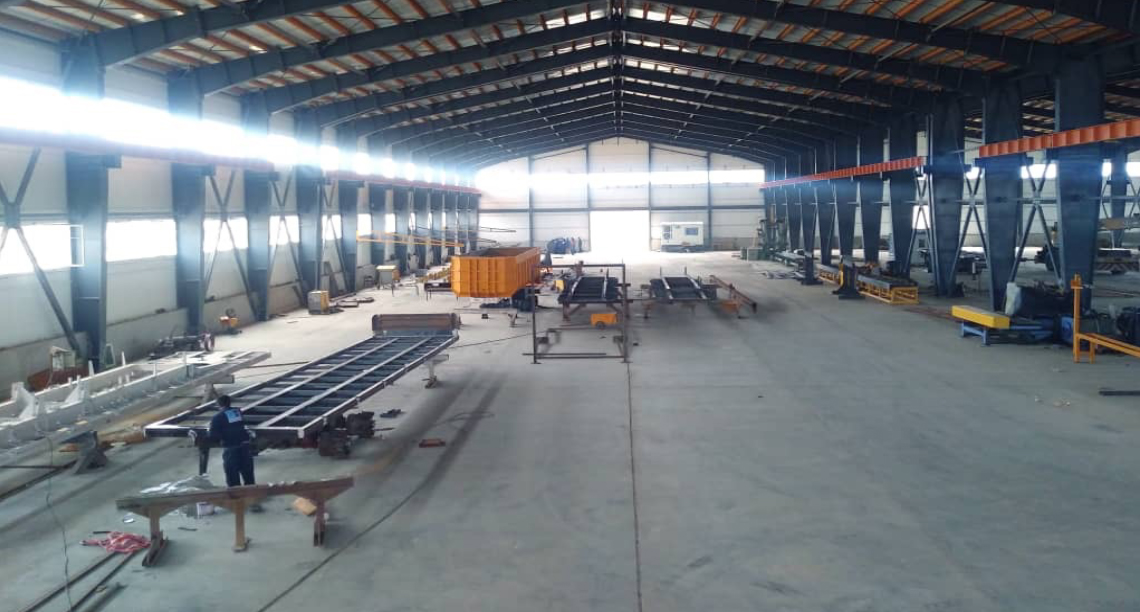

This factory has 400,000 sqm land; and in 1st phase it has 26,000 sqm production halls, includes 2 production halls and 1 central warehouse.
This factory is located in a strategic area, next to railway station and adjacent to “Special Economic Zone” customs.
This factory has about 180 workers now, active in production of different types of trailers & truck applications.
In future and by completion of 2nd phase, assembling of different models of trucks and commercial vehicles will be started as well.
| Dimensions: |
Length: 13,700 mm Width: 2,550 mm |
| Max. Payload: |
27 tons Ability to carry 1 x 40’ / 2 x 20’ containers up to 27 tons |
| Weight: | 5,400 kg |
| Body: |
Flooring from 28 mm water resistant anti scratch plywood / 28 mm Bamboo 9 x Short steel removable pillars (each side) / 2 x Short steel removable pillars (rear) Steel front pillar / 70 m front wall |
| Chassis: |

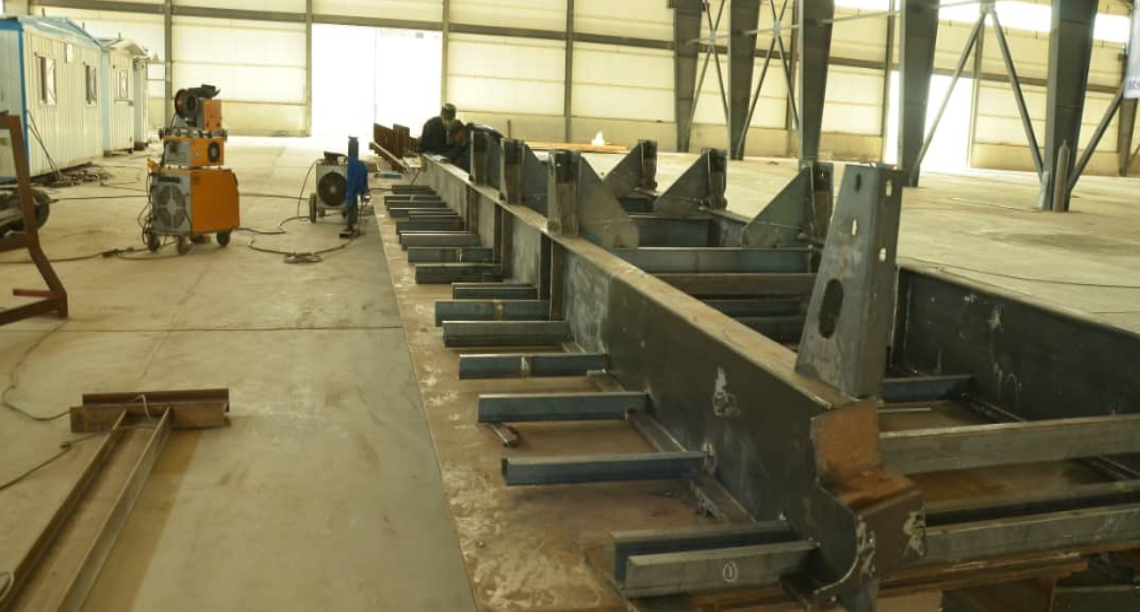

Chassis & components from St.52-3 / QST380 / S 500 / AG700L Automatic CO2 welding technology / Merkie, Germany Main I beams with standard flat bar All steel stamping parts are assembled using fixture |
| Axle: |
3 x 10 tons BPW Germany Front axle with automatic lifting capability |
| Suspension: |
Air suspension with special shock absorbers Lowering and rising of trailer height |
| Tire/Rim: |
6 X Radial tires 385/65 R22.5 6 x Single rims R22.5” – 11.75’ |
| Landing Gear: | Two-speeds adjustable landing leg 24 tons dynamic capacity & 50 tons static capacity |
| King Pin: | 2” dia. (152 KN) with coupling according to SAE standard with special bolster plate |
| Breaking System: |
KnoorR Germany, disk/drum 2-lines air circuits with automatic load sensing valves Two double acting diaphragm brake chambers (2 rear axles) EBS incl. ABS & RSP (Roll Stability Program) / Emergency valve / Parking brake |
| Electrical System: | 7 & 15 Poles quick release connector with 24 volts rear and side lights LED alarming system |
| Painting: |
Shoot blasted according to SA 2.5 / Epoxy sub-coat Final polyurethane coating as per customer requirement |
| Accessories: |
Rear bumber / Rear under-run protection / Rubber shock absorbers (rear) / 12 x Container locks 9 x Ratchets and side hooks / 6 x Semi-circle mud guards / 2 x Wheel chocks Fire extinguisher box / Spare wheel carrier / 2 x Tool boxes (1.22 m) |
| Options: | 125 L stainless steel water tank / Spare tire & rim / Brake pads wear indicator |
